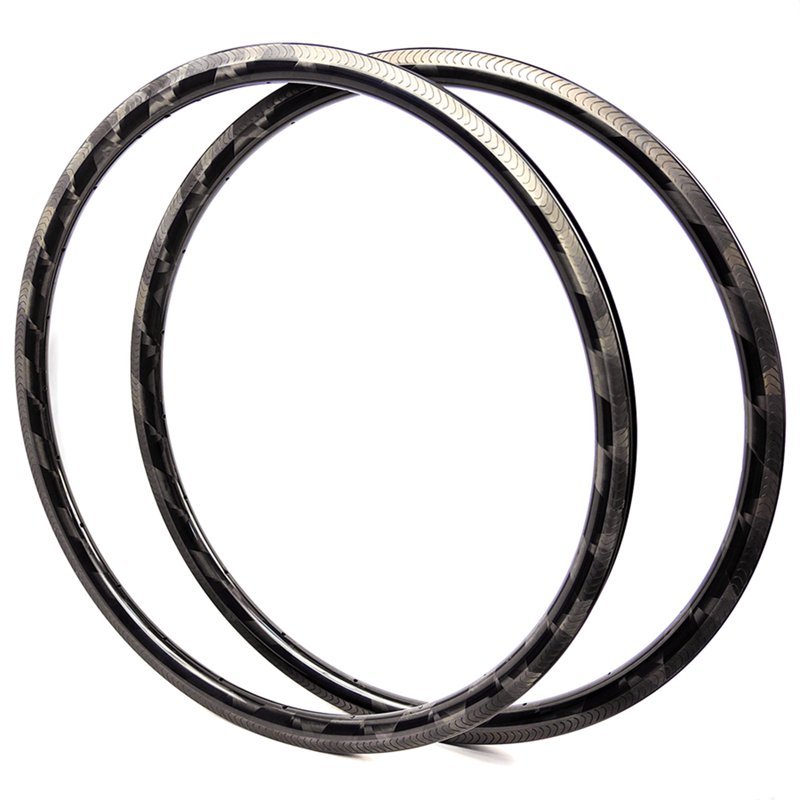

700C Butterfly Pattern Road Carbon Bicycle Rim Width 26mm Depth 30mm

RD2630V Butterfly Pattern Bright Surface Appearance Suitable for road bicycle wheels, Rim type: Tubeless、Tubular, Clincher, Three options; inner width 18mm、19mm options Laser engraved hook-shaped brake edge to enhance braking resistance

  • Item No :

    RD2630V
  • Warranty :

    2 Years
  • Payment :

    Paypal,TT Bank Transfer
  • Product Origin :

    Xiamen ,China
  • Logo :

    Customized Available
  • Application :

    Road Bicycle
  • Brake System :

    Disc Brake & Rim Brake
  • Material :

    Carbon Fiber T700+T800

700C Butterfly Pattern Road Carbon Bicycle Rim No Outer Hole Laser Engraving Hook Brake Edge Width 26mm Depth 30mm

.Modle:RD2630V

·Size:700C

.Applicable Bicycle:Road Bicycles

.Rim Material:Carbon T700+T800

·Brake Type:Rim brake Or Disc Brake

.Rim Type:Tubeless、Tubular、 Clincher

.Spoke holes:16/18/20/21/24H/28H,Customized Available

.Finishing:UD/3K/12K & Matte/ Glossy

·Inner width:18/19mm

.Outer width:26mm

·Depth:30mm

·ERD:580mm (not including nipple head dimension)

·Weight

Clincher:SL:370:±15g; ST:420±15g

Tubeless:SL:370:±15g; ST:420±15g

Tubular:SL:290:±15g; ST:330±15g

·Weight Limit:130kg

·Tyre Pressure:120psi recommended max

·Spoke Hole vertical Angle:7-8° (customized available)

·Spoke Tension:100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear

·Tire:23C~28C  recommended

26mm width carbon road rims info

26mm Wide 30mm Deep 35mm Deep 38mm Deep 40mm Deep 45mm Deep 50mm Deep 55mm Deep 60mm Deep 75mm Deep
Super Light Version Weight
Tubular
290±15g 320±15g 330±15g 335±15g 350±15g 360±15g 370±15g 380±15g 440±15g
Clincher 370±15g 390±15g 400±15g 405±15g 420±15g 440±15g 460±15g 480±15g 500±15g
Tubeless 370±15g 390±15g 400±15g 405±15g 420±15g 440±15g 460±15g 480±15g 500±15g
Standard Version Weight
Tubular 330±15g 370±15g 380±15g 385±15g 400±15g 410±15g 420±15g 430±15g 500±15g
Clincher 420±15g 440±15g 445±15g 450±15g 470±15g 490±15g 510±15g 530±15g 560±15g
Tubeless 420±15g 440±15g 445±15g 450±15g 470±15g 490±15g 510±15g 530±15g 560±15g

     Three different laser engraved brake edges form potholes on the surface of the brake edge. This design can effectively improve the drainage of the brake edge, indirectly increase the friction of the brake block and enhance the braking effect. It performs better in rainya dys.




Features for tubeless type carbon bicycle rims

1,Super light toray 700+toray 800 carbon fiber material combination ,making rims light weight while keeping the performance and stiffness.

2,For tubeless rims ,a rounded edge is designed for easier tire installation.

3,A bump on tubeless rim bed helps to mount tire more efficient.

4,Using special skills to smooth the inside wall,more efficiently cleaning .

5,Scientific drilling spoke angles can be customized according to the needs.
