BIKEDOC Road Carbon Frame Disc Brake Roadbike 700C Light Weight

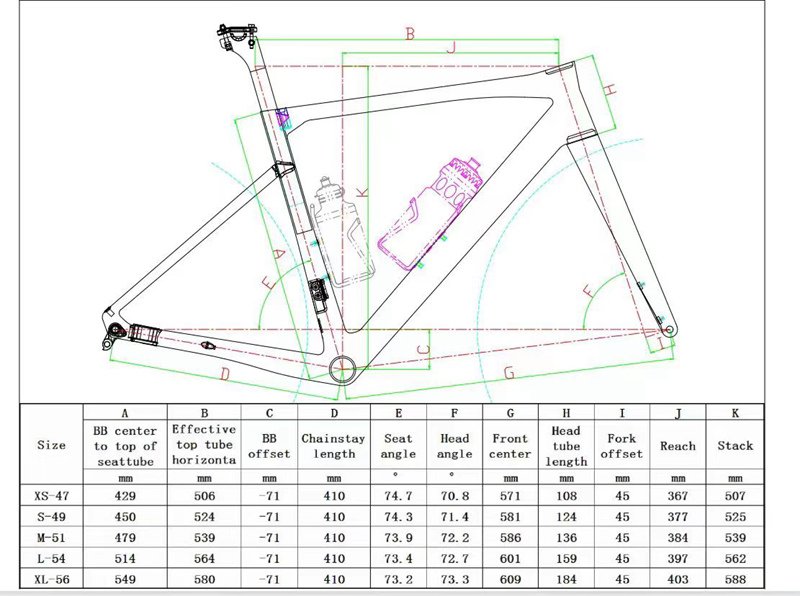

Available Size ：XS/S/M/L/XL

Headset Size：Top 1-1/2 (52mm) Down 1-1/2(52mm)

Handlebar Size: 400x80mm, 400x90mm, 400x100mm, 420x90mm, 420x100mm, 420x110mm, 440x110mm, 440x120mm, please choose!

Bottom Bracket：BB86, 41*86mm

Maximum Load：125KG

Cable : All Routing Internal

Seatpost Length : 330mm, offset 10mm.

Brake: Flat Mount Disc Brake, 140mm rotor.

Max Tire Clearance: 700*32C

Spacing: Fork 100x12mm, Frame 142x12mm.

Weight: 1080g +/-60g, Fork 380+/-15g, Seatpost 205+/-10g, Handlebar 360+/-15g

Packing List: Frame, Fork, Seatpost, Handlebar, Headset, Clamp, Thru Axle

Warranty: 2 years

Suitable Derailleur: Di2 And Mechanical Both

(959g:S size frame, 354g:400x90mm bar, 369g:no cut fork, 203g:no cut seatpost).

• High Stiff&Performance(Using Japan toray 700 +toray 800 carbon fiber material)
• Light Weight ,Stiffness ,Durable
• Internal Cable Routing(It is easy for painting job,Also makes the frame a better looking  )
• Di2 compatible (According the weather or road conditions ,it can be adjusted automatically)
• Use a pop trend for head tube with 1-1/8'' 1-1/2''
• Popular BB86 for bottom bracket

About Personal Design Extra cost Introduction

.Logo-If you want to custom your own logo or color painting ,then need to pay extra cost ,normaly for logo design is for usd30-usd60/1 color ,this is depends on the size of your logo ,and this is called print board cost ,it means next time if you want same size same color logo ,then dont need to pay any more .

.Painting- For color painting ,the cost is for usd30-60/1 color ,it depends on the size of your color painting .and this is charged by painting facotry ,so i hope you will understand it before you decide to buy here .thank you .

Warranty Exclusions :

1)Crashed bikes, frames or wheels.

2)Normal riding wear and tear.

3)Improper assembly.

4)Frames or wheels with modifications.

5)Installation of components not intended for the frame or wheels.

6)Corrosion and UV damage.

7)Damages incurred by inadequate seat post insertion.

8)Damages incurred while using a rear axle-clamping stationary trainer.
