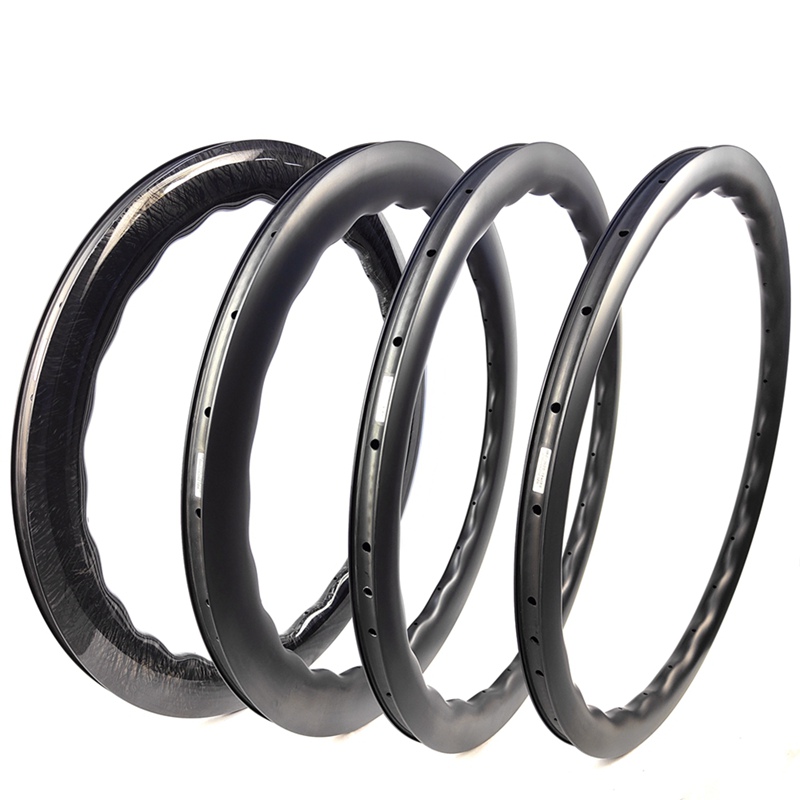

New 700C Width 28mm Carbon Road Disc Rim UD Matte Wavy Shape 24H Carbon Gravel Tubeless Wheels

New 700C Width 28mm Carbon Road Disc Rim UD Matte Wavy Shape 24H Carbon Gravel Tubeless Wheels

.Modle:RDTW28 4540

·Size:700C

.Applicable Bicycle:Road/Gravel Bicycles

.Rim Material:Carbon T700+T800

·Brake Type:Disc Brake

.Rim Type:Tubeless

.Spoke holes:24/24H

.Finishing:UD/Marbled/12K & Matte/ Glossy

·Inner width:21mm

.Outer width:28mm

·Depth:45/40mm

·ERD:548.5mm (not including nipple head dimension)

·Weight :

Tubeless:410±15g

·Weight Limit:120kg

·Spoke Hole vertical Angle：7-8° (customized available)

·Spoke Tension:100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear

·Tire:25C~30C  recommended

28mm Width Carbon Gravel/CX/Road Rims Info

Features for tubeless type carbon bicycle rims

1,Super light toray 700+toray 800 carbon fiber material combination ,making rims light weight while keeping the performance and stiffness.

2,For tubeless rims ,a rounded edge is designed for easier tire installation.

3,A bump on tubeless rim bed helps to mount tire more efficient.

4,Using special skills to smooth the inside wall,more efficiently cleaning .

5,Scientific drilling spoke angles can be customized according to the needs.
